- Sku: 036451
- Vendor: QUICK

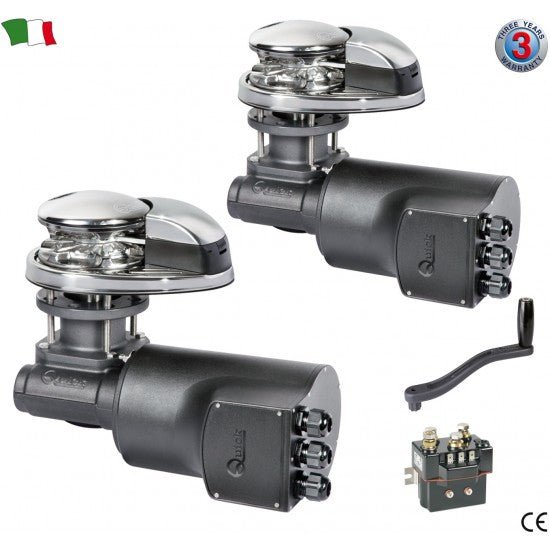

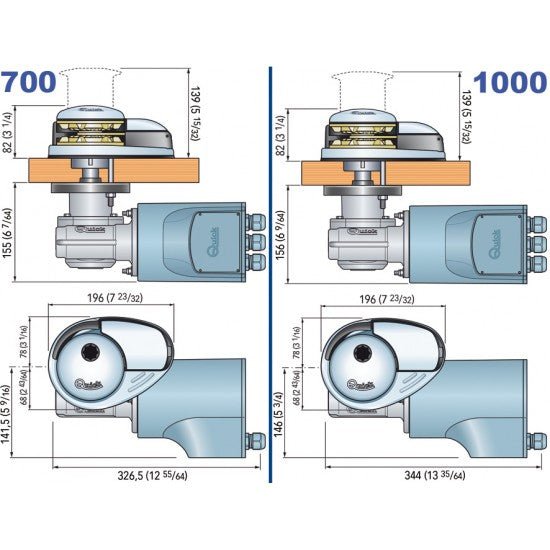

ANCHOR WORKER QUICK PRINCE DP2 12V 700/1000
Vertical anchor worker suitable for boats 7-10m / 23-33ft
- Stainless Steel Base AISI 316
- Integrated sensor for chain counter
- Manual Free-Fall system
- Waterproof IP66
- Anodized aluminum
Features 700W
|
Version |
DP2 700 |
|
Force |
700W |
|
Trend |
12V |
|
Maximum traction |
680 Kg / 1499 lb |
|
Maximum working load |
300 Kg / 661 lb |
|
Workload |
100 Kg / 220 lb |
|
Absorption load at working load |
95 A |
|
Maximum chain speed |
22.6 m/min | 74.1 ft/min |
|
Maximum chain speed at working load |
11.6 m/min | 39.1 ft/min |
|
Weight - DP2 - [without drum] |
15.6 Kg / 34.4 lb |
|
Chain reel |
|
8mm |
5/16" |
|||||||
|
Chain |
|
|
|
8mm |
8mm |
5/16" |
5/16" |
|||
|
|
|
|
|
|
DIN 766 |
ISO |
BBB |
G4 |
||
Vertical anchor worker suitable for 10-13m / 33-43ft boats
- Stainless Steel Base AISI 316
- Integrated sensor for chain counter
- Manual Free-Fall system
- Waterproof IP66
- Anodized aluminum
Features 1000W
|
Version |
DP2 1000 |
|
Force |
1000W |
|
Trend |
12V |
|
Maximum traction |
930 Kg / 2050 lb |
|
Maximum working load |
420 Kg / 926 lb |
|
Workload |
140 Kg / 309 lb |
|
Absorption load at working load |
130 A |
|
Maximum chain speed |
31.2 m/min | 102.4 ft/min |
|
Maximum chain speed at working load |
16.5 m/min | 54.1 ft/min |
|
Weight - DP2 - [without drum] |
16.7 Kg / 36.8 lb |
|
Chain reel |
|
|
8mm |
5/16" |
||||||
|
Chain |
|
|
|
|
|
|
8mm |
8mm |
5/16" |
5/16" |
|
|
|
|
|
|
|
DIN 766 |
ISO |
BBB |
G4 |
|
ANCHOR WORKER QUICK PRINCE DP2 12V 700/1000
